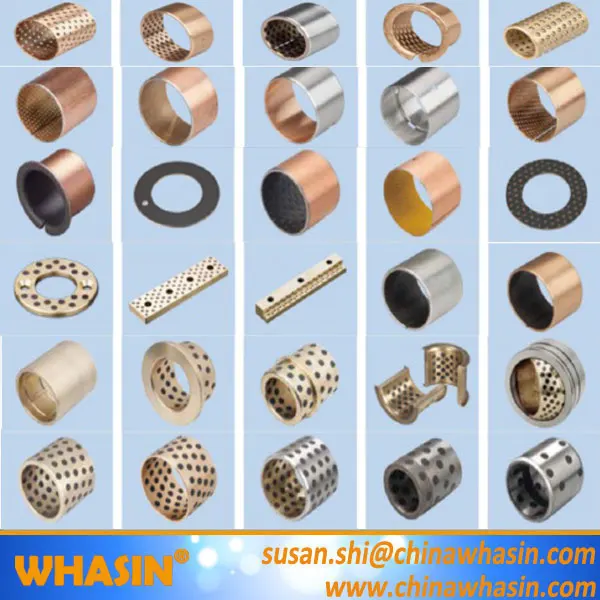

Bronze bearing self lubricant bush copper half-bearing bushing

FOB Reference Price:Get Latest Price
US $0.03-9 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
OEM
Model Number:
OEM
Type:
flanged,sleeve,thrust washer,slide pad,plain,skateboard
Material:
brass,bronze,copper,steel,stainless steel,bimetal,graphite
Other products:
DU,DX,Bimetal,wrapped bronze bushing,oiles bearing
Samples:
charged or free samples, small order acceptable
Lubricating:
Covered with POM,PTFE,Graphite,carbon,Teflon,Dry,Oil,oilless,grease
Features:
Wear,Dry,Low Resistance bush,Harden,Maintenance free bushing
Finishing:
bronze-plating bush or tin-plating bushing,no Pb,lead free bushing
Application 1:
Updated in Machine,Machinery forest machine, farm equipment
Application 2:
Fixed bearings on the optical axis of the arbitrary position
Application 3:
oil and gas industry Auto Parts Bushing,plumbing,machine part
Application 4:
oil & gas, metallurgy, machinery,water pump,oil pump and other pumps
Bush types:
Sleeve bushing, flanged bush, ring, plate,washer,split,solid,tube,pipe
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton
Port
shanghai
Lead Time :
3-30days

Bronze bearing self lubricant bush tembaga setengah bantalan bushing

Bronze bearing self lubricant bush tembaga setengah bantalan bushing

copper half bearing bush / self lubricant bush / tembaga setengah bantalan bush slide bearing bushing sliding bush.jpg

Product Description
DU Bushing Technical Data:

Material:

1. Steel + Bronze powder + PTFE + Pb + Polymer

2. Steel + Bronze powder + PTFE + Polymer - Normally Used

3. Bronze + Bronze powder + PTFE + Polymer

4. Stainless steel + Bronze powder + PTFE + Polymer

5. Stainless steel + PTFE + Polymer

6. Carbon steel + Sintered bronze powder + PTFE + MoS2

StructurePTFE with lead/Cu/Fibre : 0.01-0.03mm
 Porous bronze : 0.2-0.3mm
 Steel backing : 0.7-2.3mm


Tin-plating 0.005mm or copper plating 0.008mm



Type       Load capacity(N/mm2)   PV limit(N/mm2*m/s)

Speed limit

(in oil)

Temp.limit    μ Frictio Coef.             Themal conductivityLinear expansion
Static  Dynamic Oscillating  OilDry(m/s)(℃) (W/MK)
SF-1X25014060503.65.0-195~2700.04~0.201311*10(-6)/k
SF-1T25014060604.310-195~2600.03~0.181311*10(-6)/k
SF-1P25014060501.82.5-195~2700.04~0.201311*10(-6)/k
SF-1W25014060503.65.0-195~3000.04~0.201311*10(-6)/k
SF-1B25014060604.35.0-195~2700.04~0.181821*10(-6)/k
SF-1D25014060503.83.0-195~2700.04~0.181615*10(-6)/k
SF-1S25014060503.64.5-195~2700.04~0.201615*10(-6)/k
SP-1SS25014060403.02.5-195~2700.04~0.251315*10(-6)/k



DU Bushing Photo:

DU Bush Bushing Pap paf p10 p20 sf-1 bearing DU bucha buje



DX Bushing Technical Data:

Material:

1. Steel + Bronze powder + POM + Pb

2. Steel + Bronze powder + POM - Normally Used

StructurePOM with/without lead : 0.3-0.5mm
 Porous bronze : 0.2-0.3mm
 Steel backing : 0.4-2.2mm
 Tin-plating 0.005mm or copper plating 0.008mm
Physical and mechannical performanceLoad capacityStatic load250N/mm2
Dymamic load140N/mm2
Oscillating60N/mm2
Speed limit(in oil)2.5m/s
PV value limitOil lubrication22N/mm2.m/s
Dry lubrication2.8N/mm2.m/s
Friction coef u0.05~0.25
Working temperature-40℃~+130℃
Themal conductivity13W/mk
Coefficient of linear expansion11x10(-6)/k



DX Bushing Photo:

dx BUSH.jpg





Bimetal Bushing Technical Data:

Material:

1. Steel + Bronze alloy (CuPb10Sn10) + PTFE

2. Steel + Bronze alloy (CuPb10Sn10)

3. Steel + Bronze alloy (CuSn4Pb24)

4. Steel + Bronze alloy (CuPb24Sn)

5. Steel + Alloy stage (AlSn20Cu)

6. Steel + Bronze alloy (CuPb30)

mechannical performanceLoad capacityStatic load150N/mm2
Max.Working temperatureGrease Lubrication150℃
Oil Lubrication250℃
PV value limitOil lubrication10N/mm2.m/s
Dry lubrication2.8N/mm2.m/s
Linear VelocityDry Friction0.4m/s
Grease Lubrication2.5m/s
Mating AxisHardness≥53 HRC
RoughnessRa-0.32~0.63
Anti-tensile Strength185 N/mm2
Alloy HardnessHB 60~90
Friction coefficient0.05~0.22
Themal conductivity47W/mk
Heat-expansion Coefficient 18x10(-6)/k



 Bimetal Bushing Photo:





SWPB Bimetal Bearing JF800 Alloy CuPb10Sn10 Hydraulic Cylinders Slide Pad Washer Sleeve Flanged Bimetal Bushing.jpg





 Graphite Bronze Bushing Technical Data:

Material:

1. CuZn25Al6Fe3Mn3 + Graphite

2. ZCuAl9Fe4Ni4Mn2 + Graphite

3. ZCuSn5AlPb5Zn5 + Graphite

4. ZCuSn10Zn2 + Graphite

5. HT250# Cast Iron + Graphite

6. CuZn25Al6Fe3Mn3 (High-stress Brass)

Physical and mechanical PerformanceDensity 8.2 g/cm3
Linear Expansion Coefficient 1.6-2.0 10(-5)/℃
Heat-conducting Coefficient 38-55W(/m.k)
Tensile Strength ≥755 N/mm2
Anti-compact Tenacity ≥400-500 KJ/m2
Hardness ≥ 210 HB
Flexibility Coefficient 100-140 KN/mm2
Tensility ≥ 12%
FrictionOil Lubrication0.03u
Dry Lubrication0.16u
Working Temperature Limits

-40℃ ~+300℃

Max Load Pressure 100N/mm2
Max Linear Velocity 0.50 m/s
Max PV Value 1.65N/mm2.m/s

  Graphite Bronze Bushing Photo:

Lubricating Bearing Pads Thrust Washer Flanged Sleeve Bush Cast Bronze Bearing Graphite Bronze Bushing.jpg

Wrapped Bronze Bushing Technical Data:

Material:

1. CuSn8P / CuSn8

2. CuSn6.5P / CuSn6.5

3. CuZn31Si

Physical and mechanical PerformanceMating AxisHardness≥50 HRC
Roughness   0.4~1.0
Max Load Pressure 100 N/mm2
Max Linear Velocity 2 m/s
Max PV Value 2.8 N/mm2*m/s
Tensile Strength 460 N/mm2
Yield Strength 260 N/mm2
Hardness 90-150 HB
Working Temperature 150 ℃
Friction Coef. 0.05~0.2u
Heat Conducting Coef. 58W/(m*k)
Heat Expansion Coef.

18.5

(10(-6)k(-1)

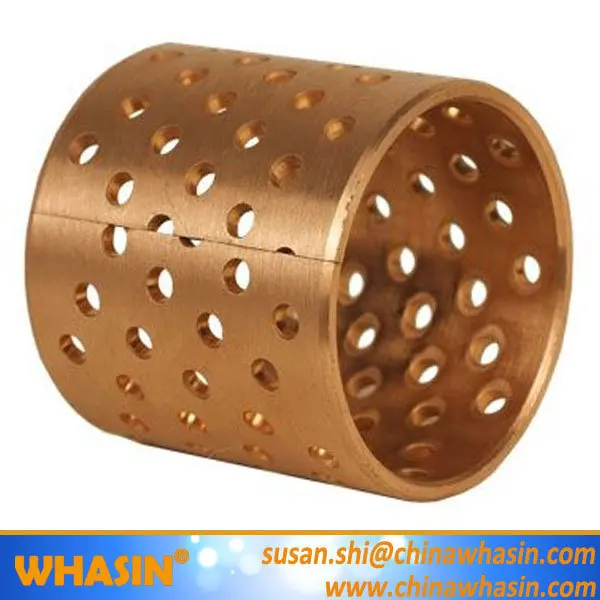

Wrapped Bronze Bushing Photo:
CuSn6.5P CuSn8P CuPb10Sn10 Wrapped Bronze Bearing Sleeve With Diamond Oil Pocket FB Bronze Bushing WB700 Bronze Bush.jpg
Bronze Material For Thrust Washer Flanged Cylindrical Sleeve Bushing Copper Brass Bush Wrapped Bronze Bearing.jpg

Sintered Bronze Bushing Powder Metalurge PM Motor Fan Iron Bearing Technical Data:
material codecomposion%character
Fe         C                  Cu         Sn       Zn     Pb    other     Oil density g/cm3    Oil rate %        Horizontal Break point kgf/mm2      Hardness HB
FU11<0.5     0.5~2.0Allo.5~75~72~4<1.56.4≥18>1520~50
FU12<0.50.5~2.0Allo.5~75~72~4<1.56.8≥12>2030~60
FU21<0.50.5~2.0Allo.8~11--<1.06.0≥25>1525~55
FU22<0.50.5~2.0Allo.8~11--<1.06.4≥18>2035~65
FU31Allo.-18~22---<36.0≥18>3030~60
FU32

Allo.

-18~22---<36.4≥12>3540~70
FU41Allo.0.25~0.60----<36.0≥18>1530~60
FU42Allo.0.25~0.60----<36.4≥12>2040~70
FU51Allo.0.25~0.60   CuSn P6  70~90<36.4≥18>3030~60
FU52Allo.0.25~0.60   CuSn P6 50~70<36.8≥12>2540~70
Performance indexData
Maximum load capacity150 N/mm2
Temperature range-60~+200 ℃
Maximum sliding speed2.5 m/s
Alloy materialCuSn6-6-3
Maximum PV value2.45 N/mm2*m/s
Sintered Bronze Bushing Powder Metalurge PM Motor Fan Iron Bearing Photo:
Powder Metallurgy (PM) FU Oil Sintered Bronze Bushing Spherical Fan Motor Bushing Oil Sintered Iron Bushing.jpg

OTHER BEARING:

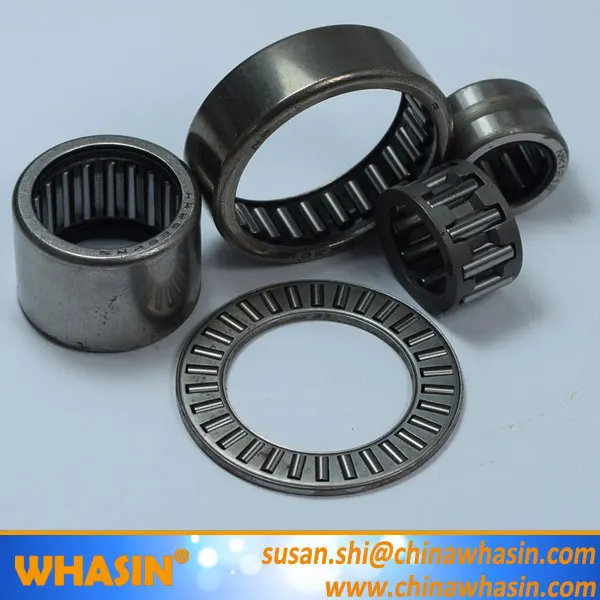

NEEDLE BEARING:
