SP-15 SP-22 IA-38 IS-19 SD-25 air transfer unit NL nylon ball conveyor caster IK-22N IK-76B UK-30T transport ball transfer unit

FOB Reference Price:Get Latest Price
US $0.3-30 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
OEM
Model Number:
OEM
Material:
Nylon,Stainless Steel,Carbon Steel,Natural Rubber,Plastic,Polyurethane
Application 1:
Transportation,Coal Mining Industry,Furniture,Harbor,Cement Industry
Application 2:
Hardware,Power,Air Cargo, airplane airport,conveyor
Usage:
Hand Truck,Lawn Mower,Tools,Beach,Garden,Hand Cart,Wagon
Name:
Forklift Forks,Idler Roller,Flat,Forklift Spare Parts,Wheelbarrow Yre
Product Name 1:
Heavy Duty PU Wheels,Double Girder Grabbing Crane,Steel Crane Wheels
Product Name 2:
Controller,Heavy Duty TPU Wheels,PP,Seal,Bearing Housing
Type 1:
Brake,Pneumatic Rubber Wheel,Truck Rail,Swivel,Solid Tire
Type:
Easy-fit,ENGINE PARTS,Carrying Roller,Press
Size:
Customized Size,Standard Size
SupplyAbility
SupplyAbility:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton
Port
shanghai,ningbo,shenzhen,guangzhou,changsha,china
Lead Time :
Shipped in 7 days after payment

We are an domestic conveyor bearing manufacturer for 15 years, has enhanced its line of  ball transfers. These transfers are interchangeable, priced competitively, and available with a wide variety of configurations etc.

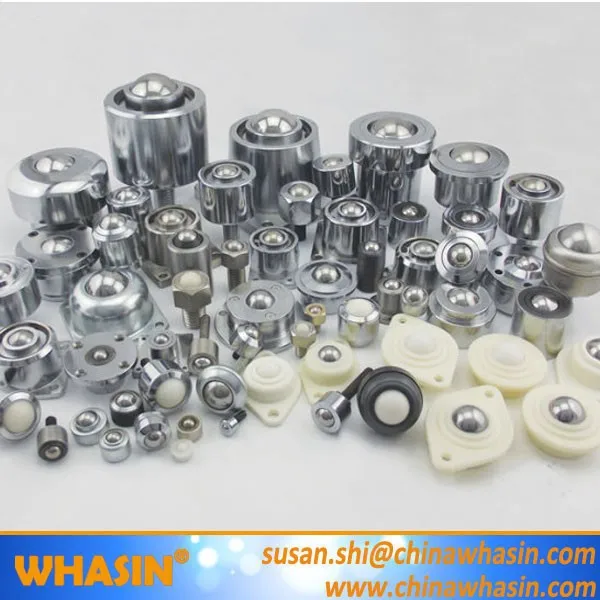

Common name:  ball transfer unit

  Universal conveyor ball, universal ball, ball round, bovine and the like. Adjustment cup feet, other logistics equipment aid, foreign various shaped stamping or processing.

Cited characteristics
   Since the universal ball rolling and flexible, so that it runs in the job board, boxes and other material objects can slip very flexible, thereby greatly reducing the labor intensity, can be arbitrarily set universal ball bearing according to the different requirements density, you can choose different bearing capacity of universal ball. Ball of zinc and carbon steel or stainless steel.

Material
shell: carbon steel with zinc plating and stainless steel materials.bearing steel,chrome steel,nylon,plastic.
Ball: carbon steel ball, galvanized steel balls, steel balls, steel balls.bearing steel,chrome steel,nylon,plastic.




Cited Scope
   Ball is suitable for all kinds of electronics, hardware, machinery, chemicals, food, forest, mining, books, supermarkets, rubber and other industries. It is widely used in transmission systems, feed systems, processing systems, processing machinery and packaging machinery and auxiliary equipment.

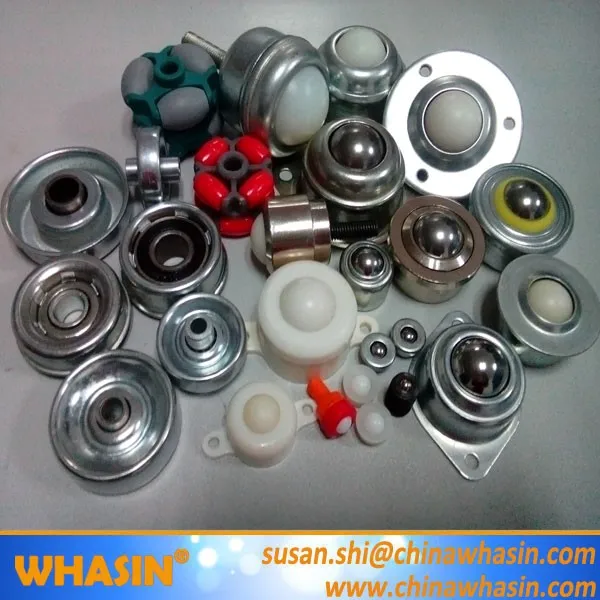

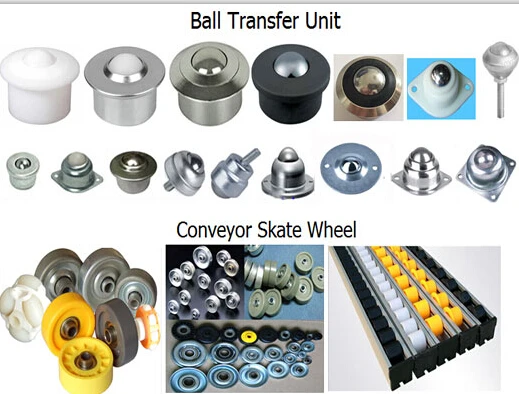

We also offer a full line of ball transfers for a variety of applications, including:

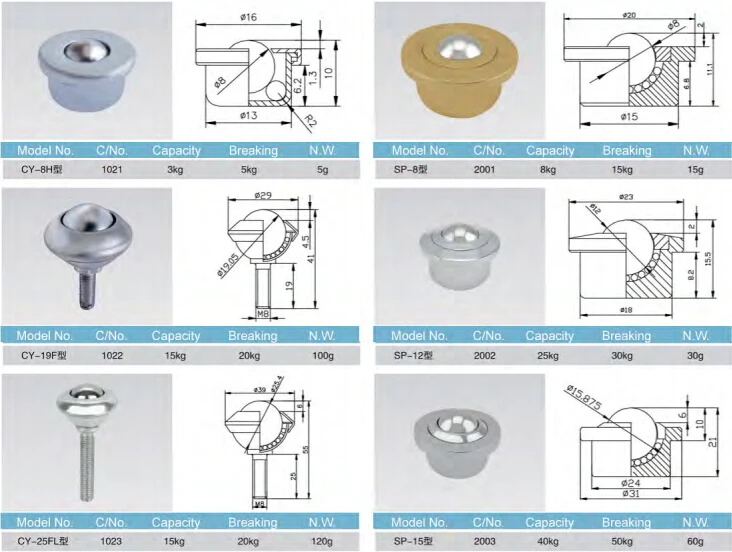

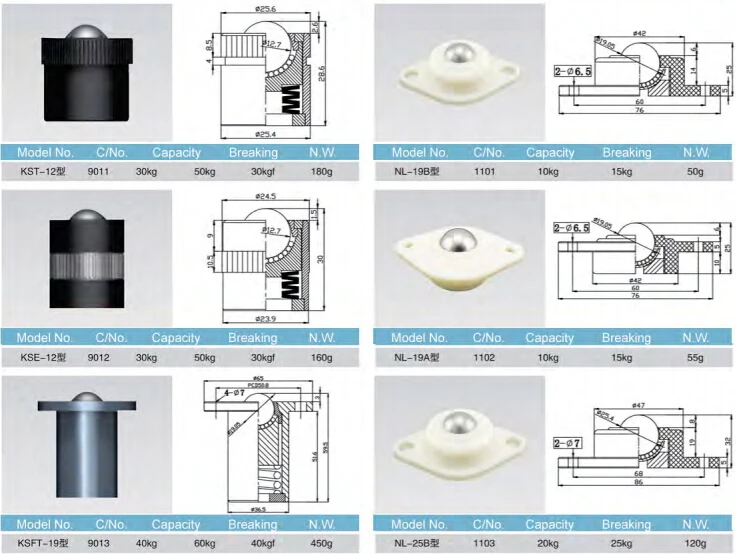

Ball transfer unit catalogue:



Universal ball conveyor
  Universal ball conveyor is carried out utilizing a ball transporting unpowered conveyor. Since the articles can be transported in any direction on the ball, it is called the universal ball conveyor. The conveyor is often used to transport the bottom surface flat, smooth items, such as pallets. Not suitable for conveying the bottom surface irregularities (such as ordinary crates), and soft bottom (eg cloth wrap, etc.) of transport. Universal ball conveyor easy to install (just universal ball fixed on the platform can be), transmission flexible, reliable performance and easy maintenance.

 Universal tables
  Is a number having a carrying capacity of universal ball fixed to a certain density is formed on the steel platform, due to the flexible universal ball rolling, so to run in its work on board, boxes and other material objects can slip very flexible, so greatly reducing the labor intensity; distribution density can be set according to different universal ball bearing requirements, you can choose a different carrying capacity of universal ball. Ball of zinc and carbon steel or stainless steel. Due to the diversity of structures and flexible universal tables, it is widely used in pipeline transportation, excessive cornering and other occasions.

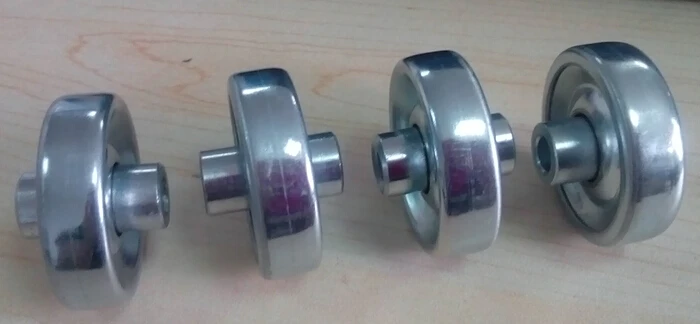

Common name:  conveyor skate wheel bearing

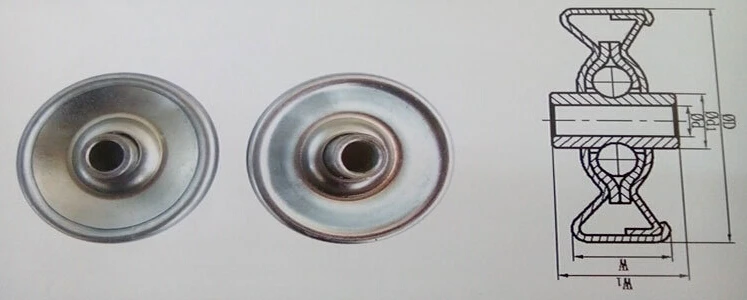

Type 1 - pressed steel skate wheel:

NameAccessoryMaterialSurfaceApplyFeature
conveyor skate wheelShellCold-rolled plate         Galvanization (zin-plating)Mechanical conveyor system
Warehousing logistics equipment
Reasonable structure
Flexible rotation
Inner ringcarbon steel
Ballcarbon steel



NameModelSpec.(mm)
Ddd1WW1
conveyor skate wheelHJ-013861211.525
HJ-02486.5121524
HJ-03508121524



* We manufacture all other size as your inquiry,please contact us for detailes

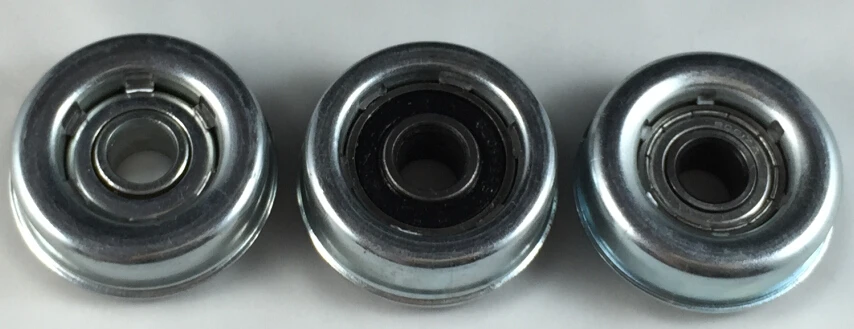

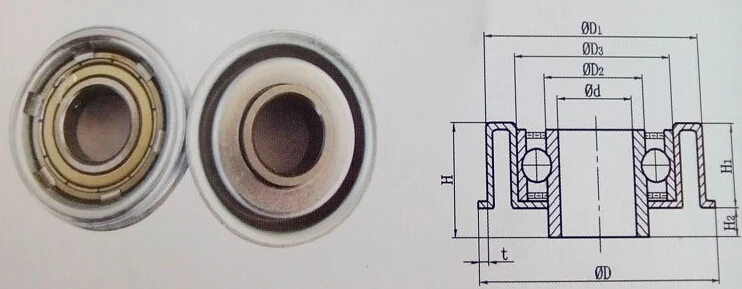

Type 2 - G series :



NameAccessoryMaterialApplyBuilt-in Bearing
G series roller bearingsShellCold-rolled plate  Unpowered
Roller
GB Bearings
BearingBearing steelNon-standard bearing
ModelD(mm)D1(mm)D2(mm)D3(mm)d(mm)t(mm)H(mm)H1(mm)H2(mm)
G2508-0.82523.412218.10.816124
G2508-1.0252312218.1116124
G2512-1.037.836172812.11.217134
G3512-1.237.835.6172812.11.217134
G3512-1.537.835172812.11.517134
G5012-1.049.848172812.1118144
G5012-1.249.8 47.61728 12.1 1.218144
G5012-1.549.847172812.11.518144
G5015-1.0 49.8 48 20.8 35 15.1 1 20 16 4
G5015-1.249.847.620.83515.11.220164
G5015-1.549.84720.83515.11.520164
G5015-2.049.84620.83515.1220164
G5712-1.056.855172812.1118144
G5712-1.256.854.6172812.11.218144
G5712-1.556.854172812.11.518144
G5715-1.056.855.620.83515.1122184
G5715-1.256.854.620.83515.11.222184
G5715-1.556.85420.83515.11.522184
G6012-1.259.857.6172812.11.218144
G6012-1.559.857172812.11.518144
G6012-2.059.856172812.1218144
G6012-2.559.855183212.12.520164
G6015-1.559.85720.33515.11.522184
G6015-2.059.85620.83515.1222184
G6015-2.559.85520.83515.12.522184
G6015-3.059.85420.83515.1322184
G6020-2.059.85626.84220.1224204
G6020-3.059.85426.84220.1324204
G7620-2.075.87227.64720.2226224
G7620-2.575.87127.64720.22.526224
G7620-3.075.87027.64720.2326224
G7620-3.575.86927.64720.23.526224
G8920-3.588.88327.64720.2328244
G8920-4.088.88127.64720.2428244



Type 3 - T series :





NameAccessoryMaterialApplyBuilt-in Bearing
T series roller bearingsShellCold-rolled plate  Unpowered
Roller
Pressed Bearing
BearingBearing steel
ModelD(mm)D1(mm)D2(mm)D3(mm)d(mm)t(mm)H(mm)H1(mm)H2(mm)
T2508-0.82523.412218.10.815114
T2508-1.0252312218.1115114
T3812-1.037.836162412.1116124
T3812-1.537.835162412.11.516124
T5015-1.049.84819.83115.1116124
T6012-1.259.857.6172815.11.216124
T6015-1.559.85719.83115.11.516124
