Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: OEM
  • Model Number: OEM
  • Standard: ANSI,BS,DIN,GB,ISO,JIS,GOST, BSW
  • HS Code: 7318160000
  • Business scope: Adapter sleeve,withdrawal Sleeves,locknut,withdawal sleeve,lock washer
  • Lock Nut Series: KM KM00(M10)~KM100(Tr500) KML NH NKL all sizes
  • Lock Washer series: MB00~MB38 Lock card series MS44~MS100 MSL44~MSL96
  • Adapter Sleeve Series: H Series H200 H300 H2300 H3200 OH3144 OH3044 OH2344 H3100
  • Withdrawal Sleeve Series: AH208 AH300 AH2308 AH3200 AH3000 AH3120 AOH2332 AOH3132 AOH3000
  • Material: Stainless Steel,Carbon Steel Q235,Aluminum,Nylon,Alloy,Brass,Copper
  • Sleeve Series: A204~A322 A3120~A3196 A30/A31/A32/500~1060 A3024~A3096 A2302~A2356
  • Feature: simple structure,convenient,accurate positioning,high reliability
  • Surface Treatment: Black, Zinc Plated, Zinc (Yellow) Plated, H.D.G. ,Dacromet,etc.

Packaging & Delivery

Packaging Details carton/pallet
Delivery Time 3-7days,according to order quantity

Adapter Withdrawal Sleeves Oh3168 Bearing Sleeve H316 H3122 H318 H320 H308 H310 H218 H208 for Plummer Block

Product Description

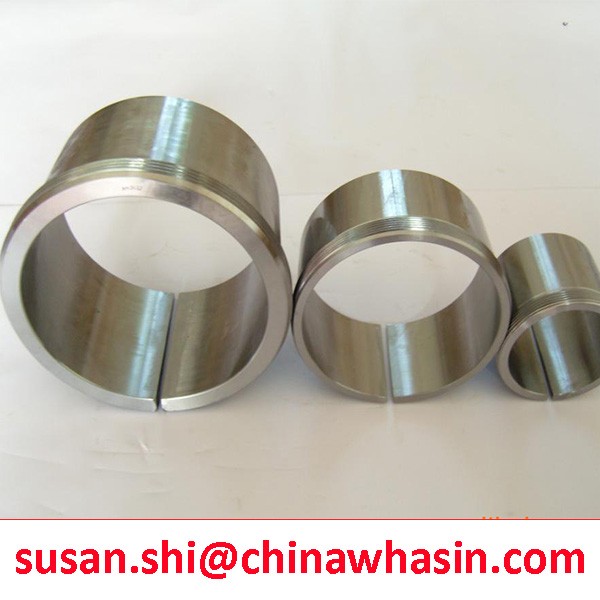

ithdrawal sleeves can be used to mount bearings with a tapered bore on cylindrical seats of stepped shafts . The sleeve is pressed into the bore of the bearing that abuts a shaft shoulder or similar fixed component. The sleeve is located on the shaft by a nut or an end plate. Lock nuts or endplates are not supplied with the withdrawal sleeves. KM or HM lock nuts and respective locking washers are suitable but must be ordered separately. Further information will be found in the section "Lock nuts with locking washer or clip".
  To secure the bearing to the shaft, press the withdrawal sleeve into the bearing bore. To do this, particularly where larger bearings are concerned, considerable force is required to overcome the friction between the mating surfaces of the bearing and sleeve and of the sleeve and shaft. Mounting and dismounting of bearings on withdrawal sleeves can be facilitated considerably by using a hydraulic nut.

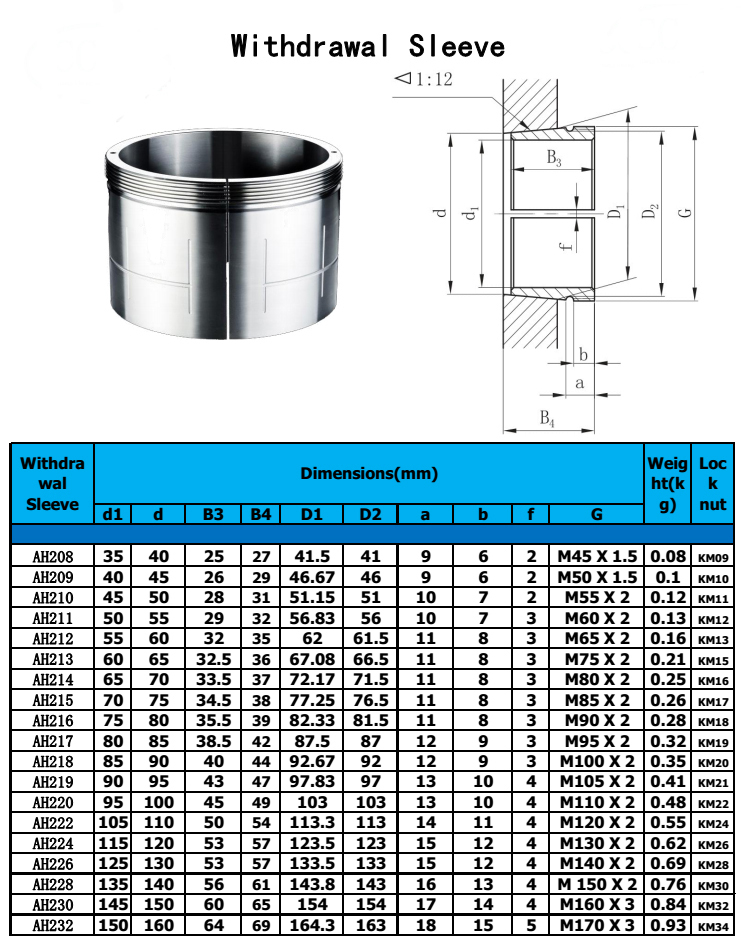

Withdrawal Sleeve Drawing:

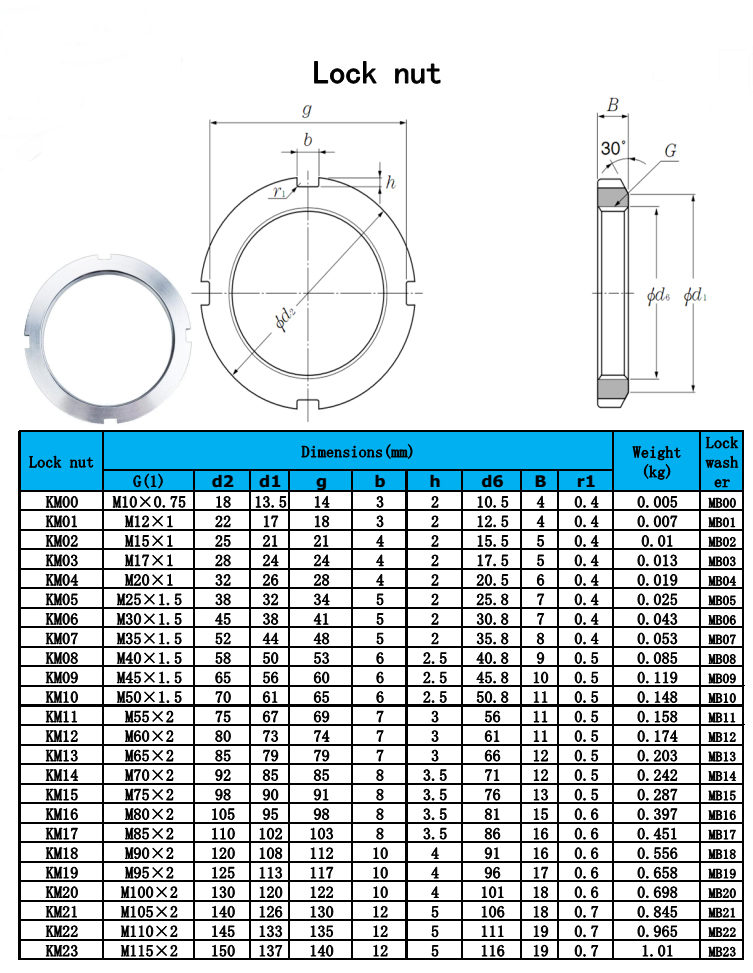

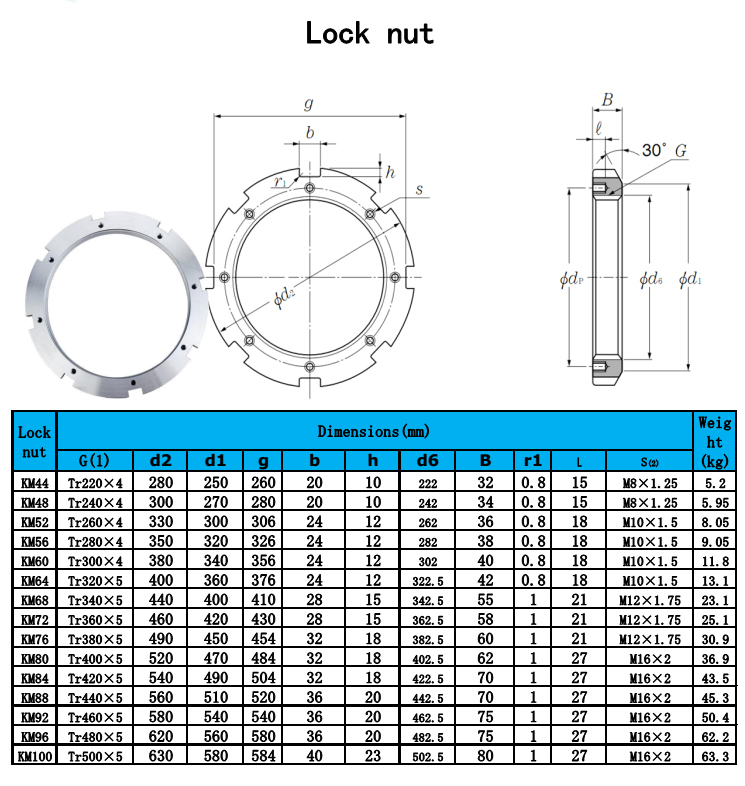

LOCK NUT DRAWING:

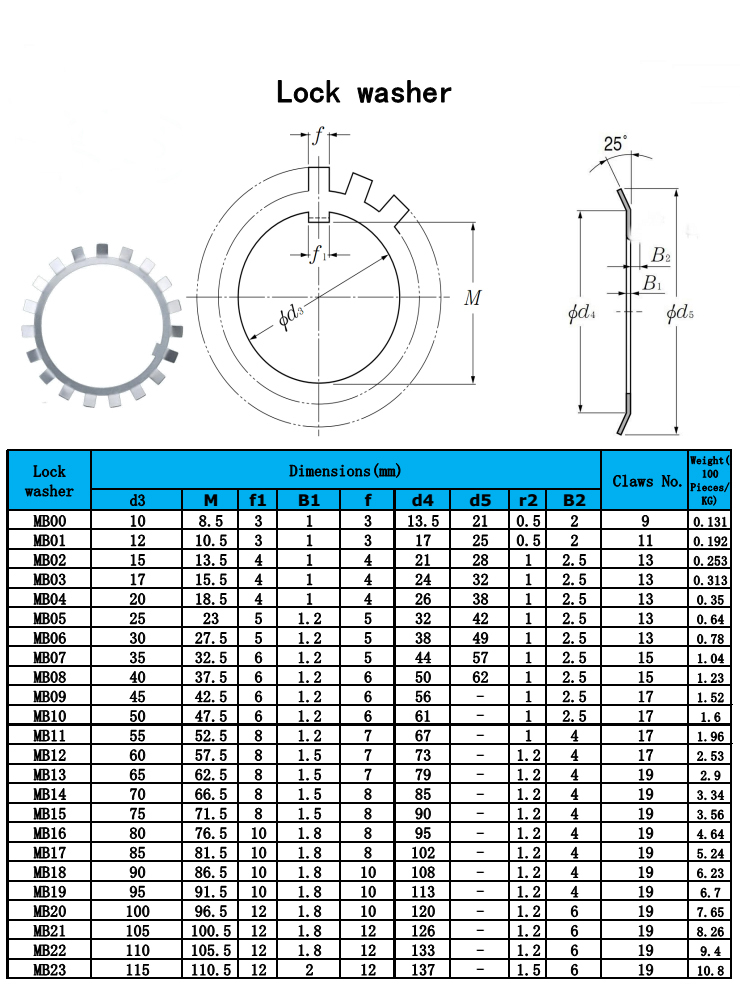

LOCK WASHER DRAWING:

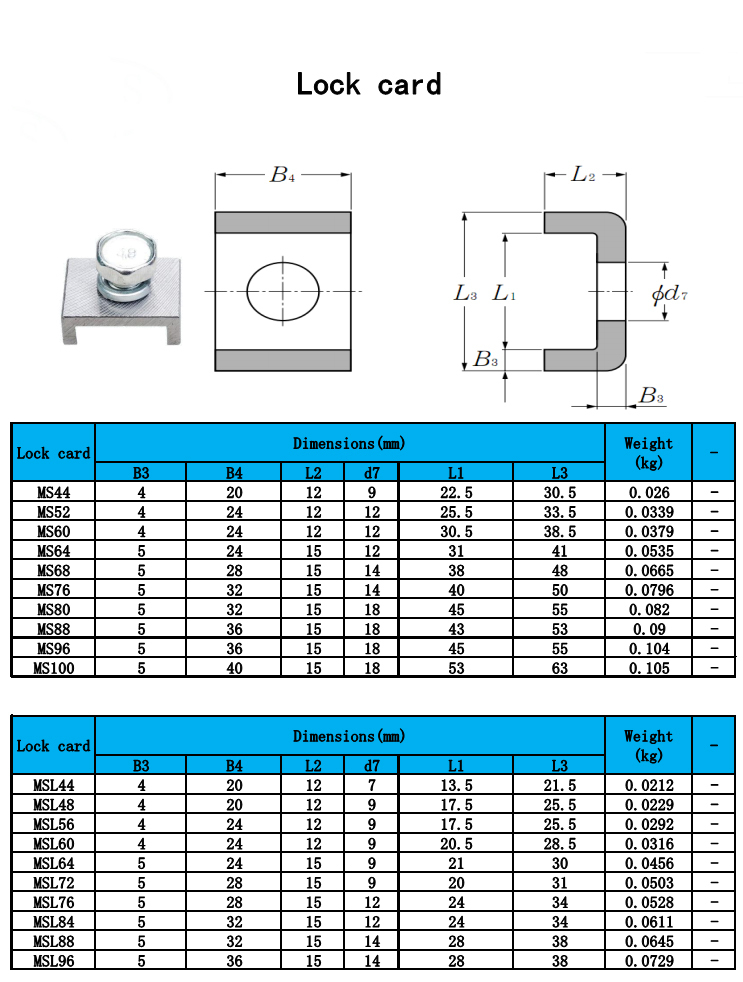

LOCK CARD DRAWING

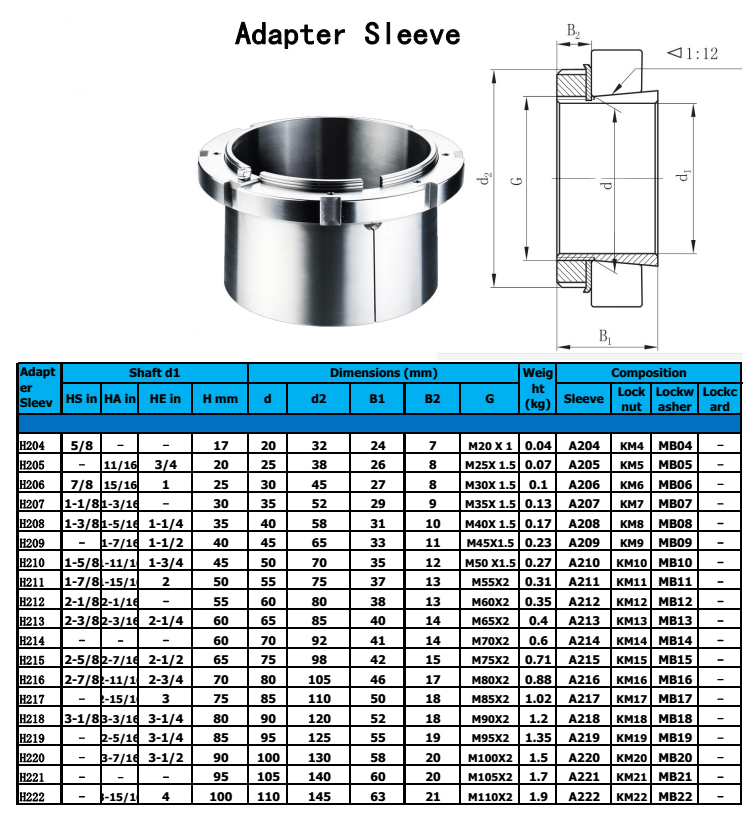

ADAPTER SLEEVES DRAWING:

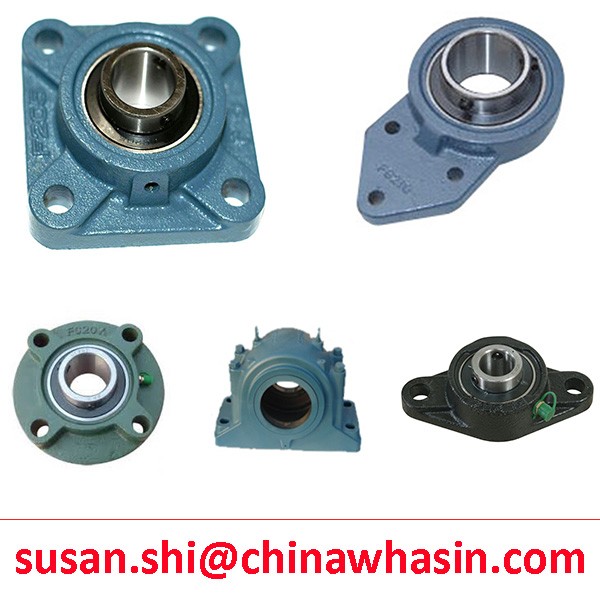

bearing pillow block lock nut adapter sleeve
